Improved insulation effect by PV; decreasing demand on refrigerants and dry ice
Material and Design
Material - Ultra-high strength metalized aluminum film for outer material, XPS or PV for insulation material.
Design - Improved insulation effect by VIPs; decreasing demand on refrigerants and dry ice; strengthening load bearing by VIP composited panel; foldable box and easy for storage and transportation. Sewing shoulder strap and easy for carrying; Special net bag for storing refrigerants.
Specifications
| Model | Capacity（L） | Dimension（mm） | Weight（Kg） | |
Internal | External | |||
DB-PV22L | 22 | L380*W220*H270 | L430*W270*H320 | 2.7 |
DB-PV40L | 40 | L480*W250*H350 | L550*W320*H420 | 5.5 |
DB-PV60L | 60 | L520*W300*H390 | L600*W380*H470 | 6.5 |
DB-PV70L | 70 | L520*W300*H460 | L600*W380*H540 | 7.6 |
DB-PV110L | 110 | L630*W400*H435 | L700*W470*H500 | 8.8 |
Option
Deep cold boxes on demand for different capacities and sizes
Outer jacket and insulation materials can be selected based on customer's demand
Temperature monitoring system can be installed and easy for disassembly
Application
Transportation of fresh food and hot/frozen food
Transportation and storage of special chemicals and pharmaceuticals
Relatively long-hour delivery of low-temperature products

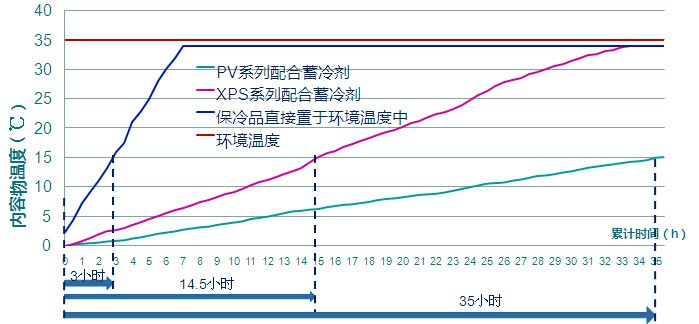

Performance
Ambient temperature: constant +30℃
Internal temperature: lower than 15℃ within 35h for box with PV insulation and refrigerants; lower than 15℃ within 14.5h for box with XPS insulation and refrigerants; The performance of PV box is 2-3 times better than XPS box.
Contents: Refrigerated articles that pre-cooled to 0℃
